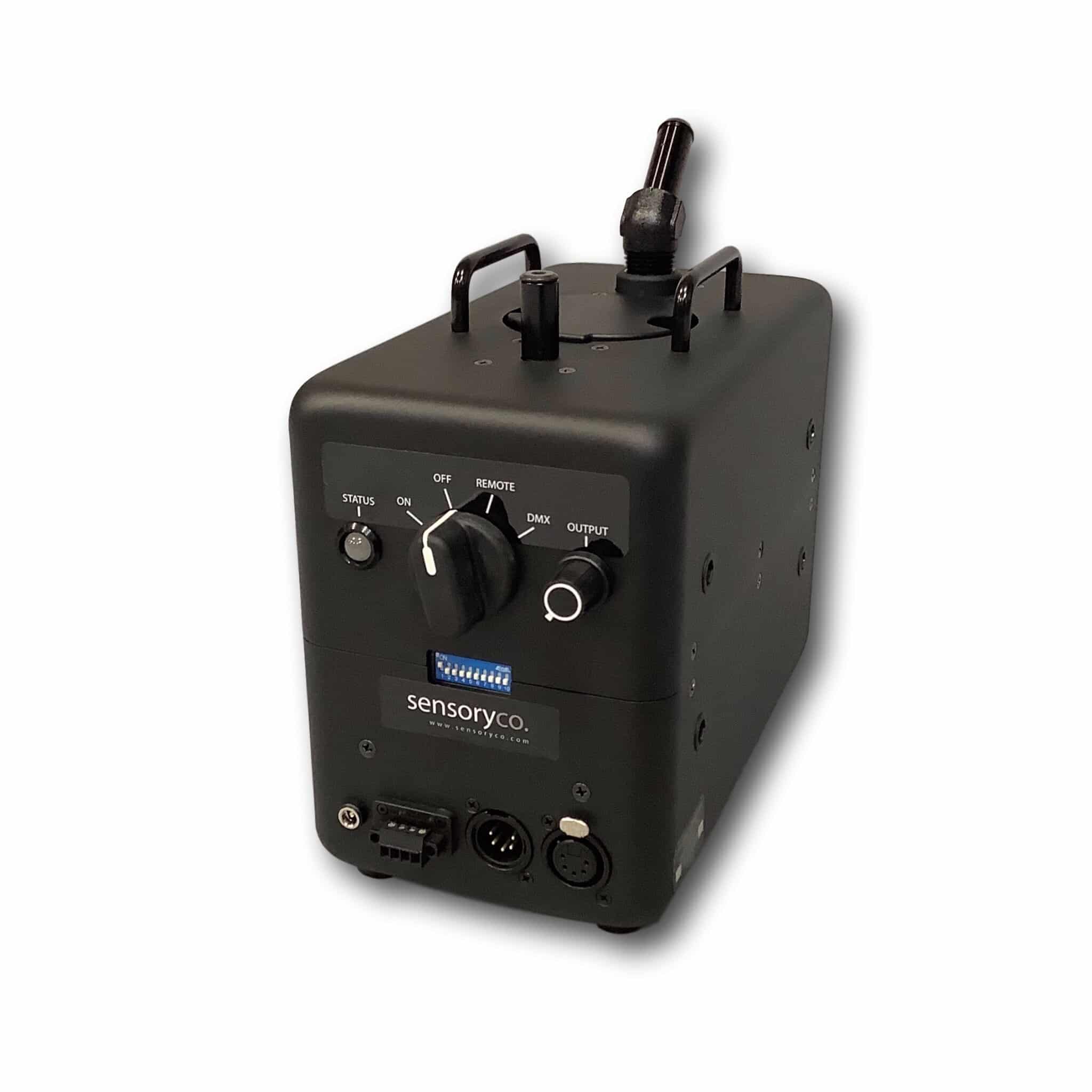

SMXT1 Scent Generator

The SensoryCo SMXT1 is the newest in a line of scent generators developed for immersive production, entertainment and training environments. Integrated in a nondescript durable aluminum case this powerful and flexible unit delivers scents to indoor or outdoor spaces.

The SMXT1 Scent generator uses SensoryCo’s proprietary dry atomization technology allowing precise control of scent output while offering the capability of producing a large volume of aroma for short-burst applications. The SMXT1 can be operated manually or managed by outside control systems using DMX or remote contact closure inputs. The SMXT1 can also make use of its built-in auxiliary output relay to trigger fans to distribute scents or speed scent delivery.

Combined with our array of specialty scents, the SMXT1 can be tailored to almost any environment. The SMXT1 is easy to set up, easy to operate, and offers the most flexible control options available. Our system is manufactured in the USA and carries a 2 year warranty.

SmXT1 Scent Generator

SMXT1 Series Specifications

Dimensions

10.75″ l x 5.25″ d x 9.875″ h
273mm l x 133mm d x 251mm h

305 mm l x 152 mm d x 305 mm h

Weight

5.25 lb / 2.4 Kgs

Input Power

110-240 VAC, 50/60 Hz
Plug type NEMA 5-15
Power supply IEC320-C8 jack

Power Consumption

20 Watts

Scents

One per system

Coverage Approx.

Cartridge T190 or T190-TS: enclosed spaces 0 to 5,000 sq ft / 464 sq m ambient scent no distribution fan. Over 10,000 sq ft / 929 sq m using distribution fan. Dependent upon airflow, ventilation conditions.

Key Features

Low to high output scent delivery
Flexible control options
Durable aluminum case enclosure
Drop-in loading of cartridges, external access
Integrated mounting points

Media

T190 cartridges

Delivery

SensoryCo dry atomization technology

Consumption

~100 hours (*depends on conditions and settings)

Electronic Control

On/Off/Remote/DMX switch
Intensity setting via rotary dial in manual or remote operation
Dynamic variable output using DMX

DMX Input/Output

DMX512, 5-Pin connectors

Wired Remote Control

Contact closure input for on/off system control
Contact closure output for control of distribution fan
External pluggable terminal strips

Warranty

2 Years

Connect With Us

Connect with a SensoryCo Scent Technologist to discover how scent can be applied to your environment. From immersive experiences to advanced training scenarios, we’ll help you define the right strategy and technology.
